Hard geometry problem doubts

GRE Quant Problem Solving
1

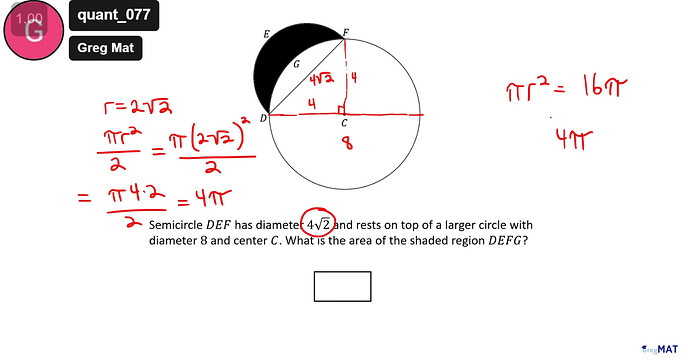

image1718×902 126 KB

How did he know that F is directly upwards from C? (how did he know it would make a 90 deg angle?)

2

If the diameter is 8, then CD and CF must each be 4.

I don’t think you can have a triangle with the sides 4, 4, 4\sqrt{2} in that ration of x, x, x\sqrt{2} without it being a right-angle triangle (specifically a 90-45-45) one. And the angle opposite the hypotenuse must be 90 degrees.

1 Like
